One question we often get about living off the grid is "what about your water?" Lucky for us, we get access to all of our water from the lake behind our house. That's because we have a one-of-a-kind off grid water system.
We don't have to worry about water delivery, water hauling, or water shortages. We face many challenges living off the grid. Yet this is one area where we've totally lucked out! Here's how our off grid water system works.
Our Off Grid Water Supply
So we have a better off grid water supply situation than a lot of our homesteading and off grid friends do. We live right on a lake. A big lake.
Yes, many other homeowners and seasonal cabin owners also have off grid homes along the water. And there's even a large territorial park next door. Yet there's more than enough fresh lake water for all of us.
We know of other families living off the grid in the area who aren't quite as lucky as we are. They haul water to their cabins in jugs, tanks, etc.
Some of them even have truck bed plastic water tanks to make the best use of space in the back of their pick-up trucks.
Our Lake Provides Fresh Water
When we first moved off grid I couldn't get my head around the fact that when we were out fishing, our neighbour simply dipped his cup in the lake when he was thirsty.
I spent a lot of years living in the Toronto area. And the idea of drinking water from a lake (think Hamilton Harbour - ugh) was jaw-dropping.
A few weeks later, I talked to a chemical engineer who lived on a property a few miles from us. She ran tests every spring, and said the water was perfectly safe. So there's a lot of water, and it's clean.
Even so, we filter our lake water for drinking. Over the years, we've tried a few different water filters. Recently, we've been using the Big Berkey (affiliate link) countertop filter and it works very well. You can read our full Big Berkey Water Filter Review here.
We Pump Water Year-Round
Though our off grid homestead backs onto a lake, it's a steep and very rocky descent down to the water. Yet we don't have to haul our water up over the rocks in buckets, thank goodness.
Instead, our off grid water system depends on a permanently installed submersible water circulating electric pump. It's 14 feet underwater in the lake. We've never had any issues with it.
Related: How Our Off Grid Water System Works in Winter
In 2017 we returned to our off grid home after three years away. During these years we had shut down and winterized the property.
We were anxious to find out whether the pump and all our off grid home systems would run after all that time. Thankfully, everything started up without a hitch.
Well, except our hot water tank. So we just warmed water on the stove for baths or swam in the lake - it was summer, after all.

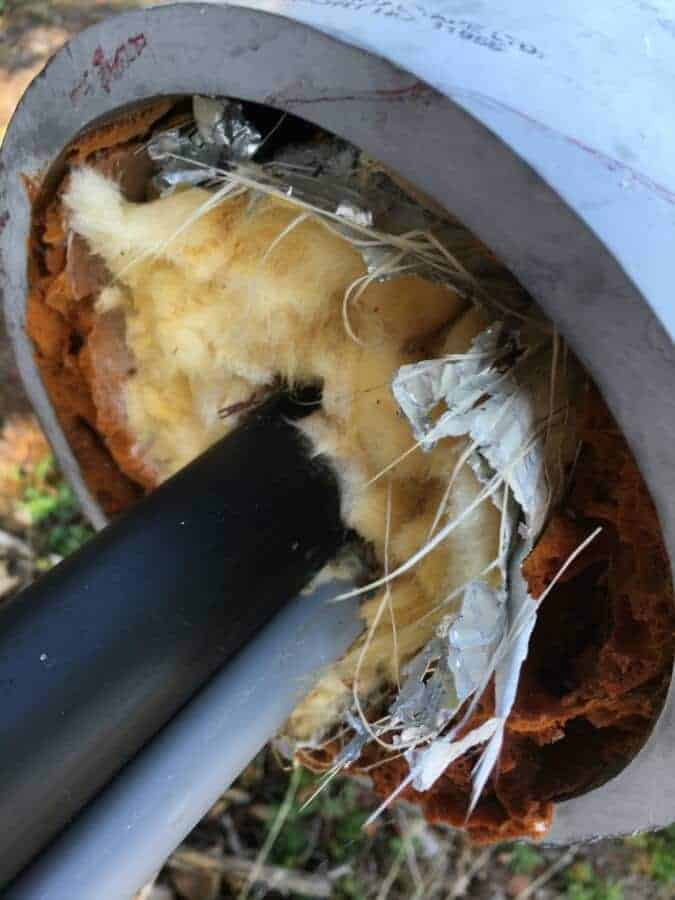

Above Ground Water Pipe
We pump water uphill through 225 feet of insulated water line protected by 3- inch PVC pipe. For our family of four, we only need to fill our 1500 gallon water tank about once every three weeks.
In the summer, when we're ready to pump we simply switch on the water pump. Then it takes about a minute to hear the water coming up the line into the tank.
A 1500-gallon Off Grid Water Tank
Our off grid water system works so well that our tank fills up pretty quickly. Of course, it depends on how low we've let the water level go.
We usually fill it in under one hour. Especially considering that we're pumping 1000 gallons, give or take, through a water line uphill over the rock! (We never let the pump run dry. Unless we're winterizing the house.)
We Have a Really Loud Horn!
We have an extremely loud horn that sounds like an air raid siren. It lets us know once the water level reaches a certain point. Then we have a couple of minutes to switch off the pump so it doesn't overflow.
A Circulating Hot Glycol System Heats the Water Line in Winter
We live in Canada's subarctic, at about 62 degrees north. So our off grid water system includes a propane-fired line-heating glycol system.
During the winter, after the lake ice begins to freeze, our water pumping routine includes turning the glycol heater on to warm the glycol line. It runs alongside the water line in the insulated pipe.
Usually, we heat the glycol for about 30 minutes. Next, we turn on the pump (there's a switch right in our water tank room), to let the glycol pump for about 20 minutes to melt ice in the line. Dan wrote an extensive winter water off grid post, with pics, on how we do this.
When we lived in the city (and in the suburbs) we rarely gave any thought to our water supply. We just turned on the tap and there it was.
Now, however, as with so many other aspects of our off grid life, we're far more aware of food, water, and shelter. We know exactly where our water's coming from, how much we're using, and how safe our water supply actually is.
Are you're dreaming of a move to the nearby countryside? Or maybe to a really remote location like we live in? Either way, do some research on your off grid water supply system options early on in your planning.
You might also like...
LIKE THIS POST? SAVE IT TO YOUR FAVOURITE PINTEREST BOARD FOR LATER!
hugh swire
Hi - i know you luckily live near a lake but what options do you/ readers consider for moving water from a flowing spring/ lake outfall, over long distances to your homestead? A friend told me about ‘RAM pumps’ – which only use flowing water to operate. Have you heard of this type of tech called Ram pump? any ideas gratefully received ?
Sarita Harbour
Hi Brian - thank you for your comment. The short answer is no to both. At the moment, we boil our water for making hot drinks. And until we can get our water storage tank scrubbed out and disinfected with vinegar we're not drinking cold water that's been sitting in it. That said, when we're out fishing on the lake we don't hesitate to dip a cup into the lake to drink it. And since our water pump is submerged just over 14 feet into the lake, it's so deep we've never had any issues with debris because it pumps water from far below any silt, leaves, etc. churned up by wind or storm waves (the system has been set up since the mid-1980s). However, we also avoid pumping water when there's been recent stormy weather, and we often go several weeks without having to pump at all. 🙂
Brian
Do you do any water conditioning for drinking/cooking etc? filters for debris?
Sarita Harbour
No - it only freezes down to six feet, and our pump is over 20 feet below the surface. Glad about the six feet of ice on top though - that's what we drive on in the winter!
Dawn
Wow! Really interesting! My parents had a shallow well when I was growing up, so I got really good at conserving water (like, I could do a whole load of dishes with one dishpan of water good!), and we're on a well here now, too. Although this well is deeper, I'm still very conscious of our water usage, especially in the summer with our vegetable gardens, and try to be really careful.
I know it's really cold where you are, is it possible for the lake to freeze as deep as your line is or does that not happen? Just curious.
Nikki
I grew up in the country where we all had wells for water, so I'm thinking this isn't that much different. My mama & daddy just got "county water" a couple of years ago.
Interesting read to learn about how things are done so differently.
🙂 gwingal
Linda Carlson
Your articles are always interesting and this one no different.. Very informative..
